Launch the Visual Studio 2008 SP1 IDE.

Figure 8.286. Visual Studio 2008 SP1 IDE

Create a

Web Application

project by going to the

File

menu in Visual Studio and choosing

New Project

.

Figure 8.287. Web Application

When the New Project window appears, choose either

Visual Basic

or

Visual C#

as your programming language.

Within the language category, click on

Web

and select

ASP.NET Web Application

from the right-hand panel.

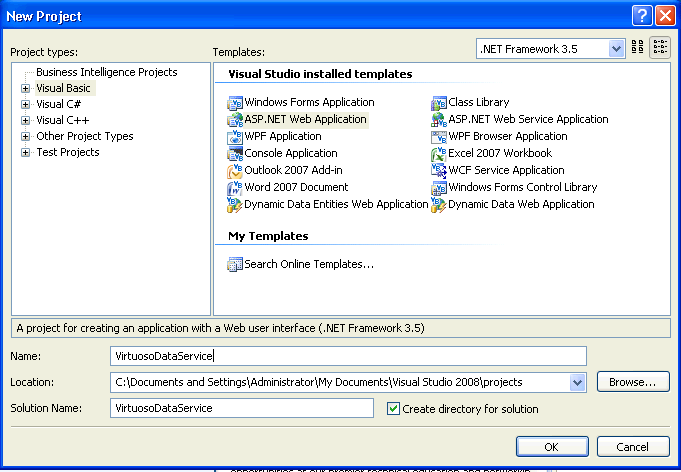

Choose a name for the project, for example

VirtuosoDataService

, and click

OK

.

Figure 8.288. name for the project

This will create a new project called

VirtuosoDataService

.

Figure 8.289. create a new project

Select the Project -> Add New Item menu option.

Figure 8.290. VirtuosoDataService

The

Add New Item

dialog will appear. Choose the

ADO.NET Entity Data Model

template. Give it the name

Virtuoso.edmx

and click

Add

to start the creation of the ADO.Net Entity Data Model.

Figure 8.291. Add New Item

In the

Entity Data Model Wizard

dialog

Choose Model Contents

page select the

Generate from Database

model type and click

Next

.

Figure 8.292. Choose Model Contents

In the

Entity Data Model Wizard

dialog

Choose your Data Connection

page, select the

New Connection button

Figure 8.293. Entity Data Model Wizard

In the

Choose Data Source

dialog, select the OpenLink

Virtuoso Data Source

from the list and click

Continue

.

Figure 8.294. Choose Data Source

In the

Add Connection

dialog, specify the

hostname, portno, username and password

for the target Virtuoso Server and check the Save Password check box.

Figure 8.295. Connection Properties

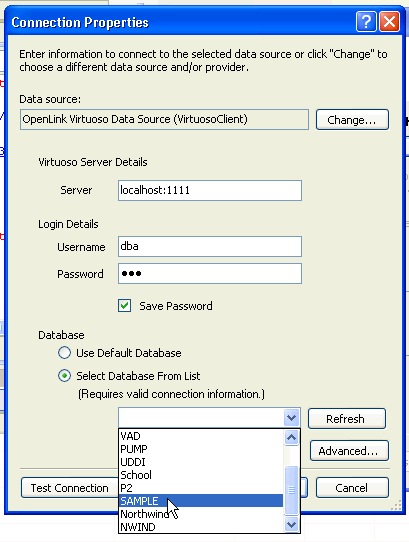

Select the Select Database From List radio button and choose SAMPLE from the drop down list. Click OK.

Figure 8.296. Add connection

Press the

Test Connection

dialog to verify that the database is accessible.

Figure 8.297. Test Connection

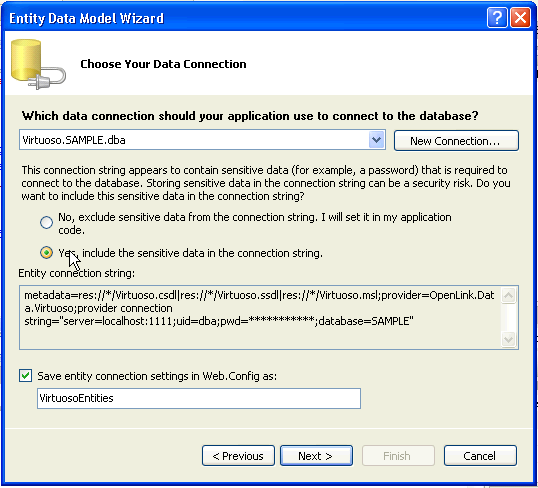

Set the

entity connect string

name to

VirtuosoEntities

(note this name as it is required in the section on creating and ADO.Net Data Service) and click

Next

.

Figure 8.298. entity connect string

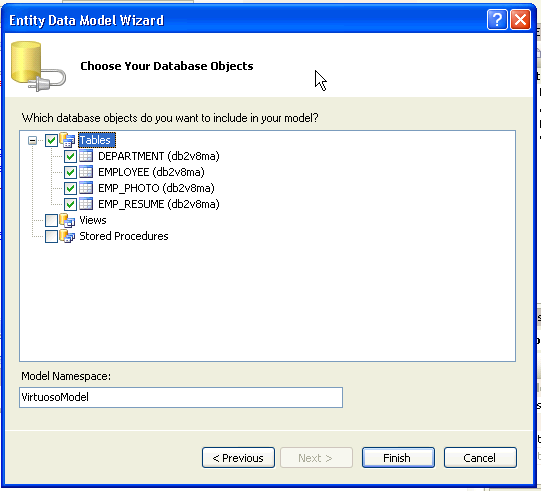

In the

Choose your Database Objects

page, tick the

Tables

check box to select all tables in the SAMPLE catalog for addition to the Entity Data Model. Set the

Model Namespace

to

VirtuosoModel

and click

Finish

.

Figure 8.299. Database Objects

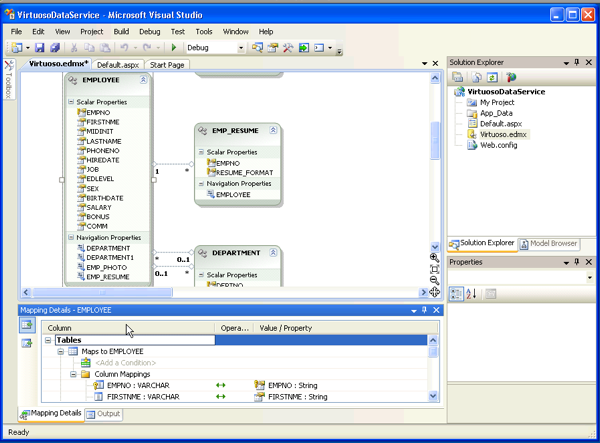

The

Virtuoso.edmx

EDM will be created with the tables and relationships displayed in the Visual Studio IDE

Figure 8.300. Virtuoso.edmx
